Robot welding fixture

Commodity name：Robot welding fixture
Manufacturer： Xinbao Intelligent

The main feature of this fixture is that from the platform to the accessories, there are standard holes without traditional threads or T-shaped grooves. With the quick locking pin, assembly becomes faster and more convenient, and positioning becomes more accurate.

Message

Product Details

　　Three dimensional hole combination flexible welding process equipment.

　　Three dimensional: represents three directions. Generally, fixtures are vertical and horizontal without any vertical direction. The platform has two directions on the surface, and the four edges can be used for vertical installation, thus achieving a three-dimensional combination.

　　Hole system: The main feature of this fixture is that it has standard holes from the platform to the accessories without traditional threads or T-shaped grooves. With the quick locking pin, assembly becomes faster and more convenient, and positioning becomes more accurate.

　　Combination: Because all attachments are pre made, they can be combined and adjusted according to the needs of the product.

　　Flexibility: Due to the aforementioned functions, the entire equipment can be adjusted according to product changes. A set of fixtures can meet the needs of several or dozens of products, greatly accelerating the process of product research and development, trial production, and saving a lot of manpower, material resources, and financial resources (environmentally friendly and low-carbon products).

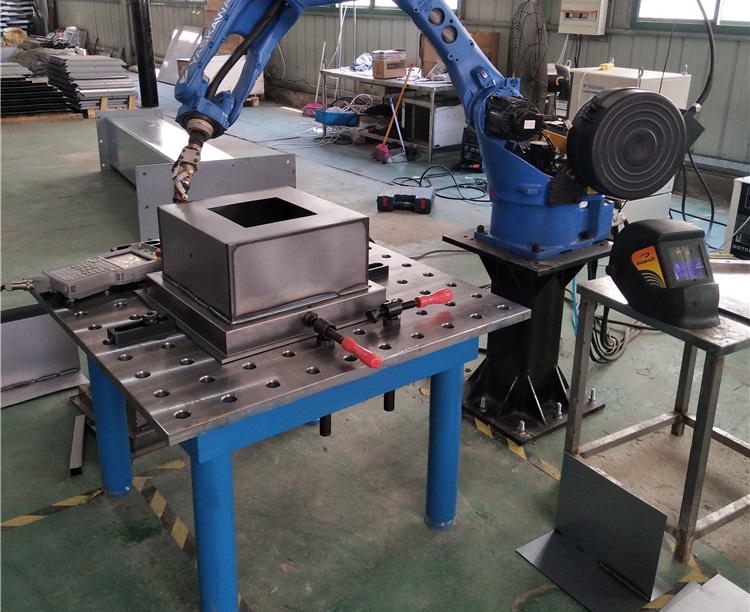

　　Welding: This product is a universal fixture designed specifically for the manufacturing of welding products; It is very convenient, flexible, and precise for welding, and is much more advanced than traditional welding methods.

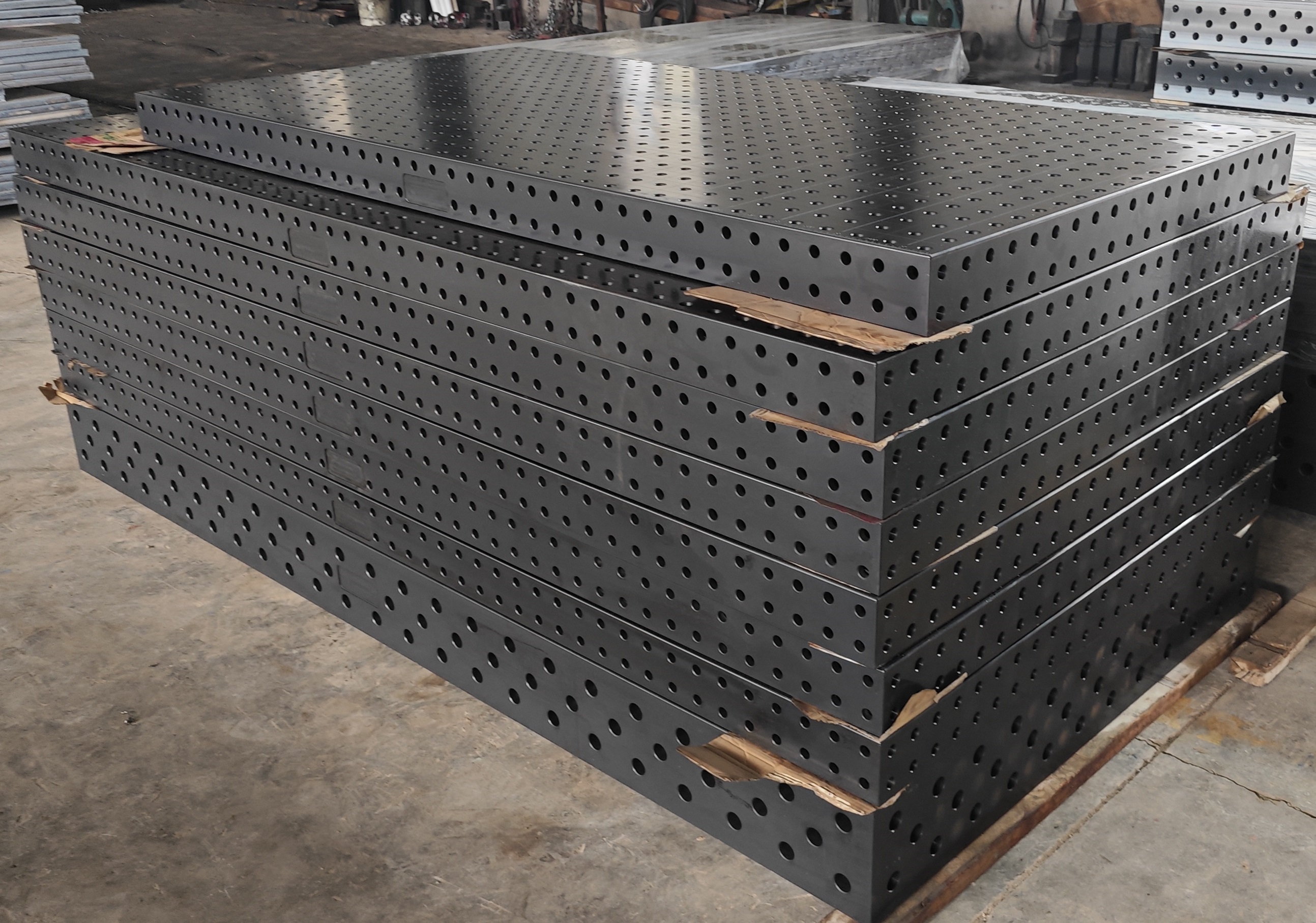

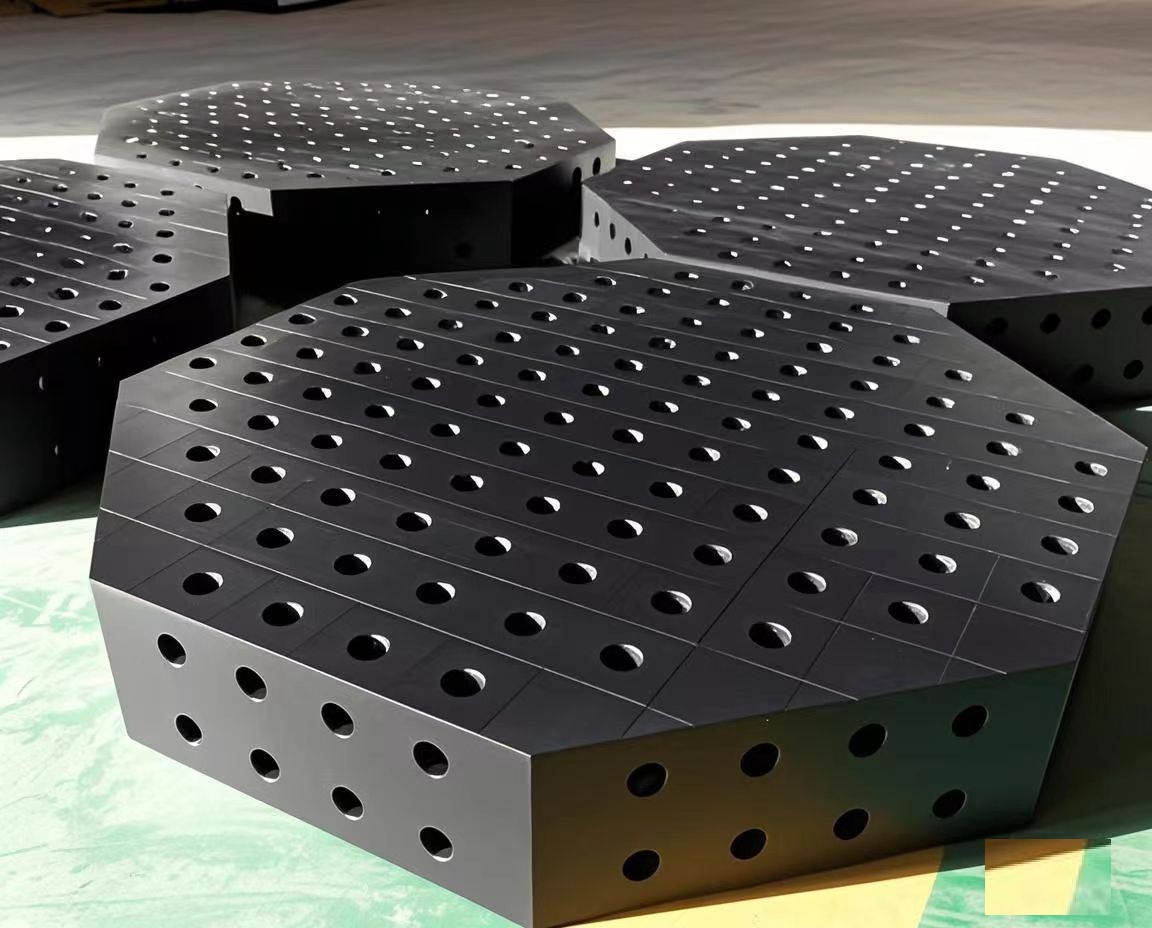

　　Dimensions of 3D steel platform: (Material Q345 can also be referred to as 16mn)

　　Length x Width (mm):

　　1000x1000/1200x1200/500x1500/2000x1000/2400x1200/3000x1500/4000x2000

　　Dimensions of 3D Casting Platform: (Cast Iron HT300)

　　2000x1000/2400x1200/3000x1500

　　All 3D platforms have a side height of 200mm

　　2D platform size:

　　1000x1000 2000 × 1000 2400 × 1200 1200 × 1200 1500 × 1500 3000 × 1500

　　Hole size:

　　The diameter 28 series platform has a hole tolerance of d10 level, and the locking pin that matches the platform is h7 level. The distance between the centers of adjacent holes is 100 ± 0.05mm

　　The diameter 16 series platform has a hole tolerance of d10 level, and the locking pin that matches the platform is h7 level. The distance between the centers of adjacent holes is 50 ± 0.05mm,

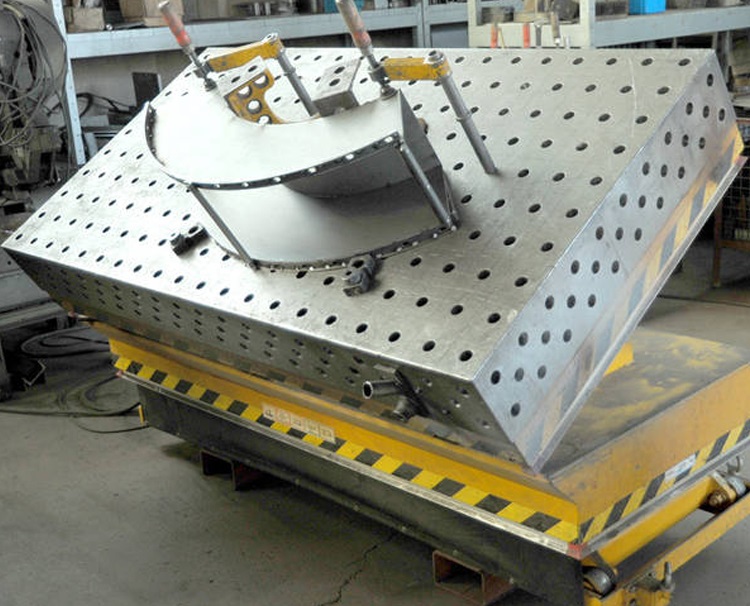

　　There are three forms of workbench columns: height (divided into three types) with a load-bearing capacity of 2t, fixed (frame type) with a load-bearing capacity of 5t, movable (lifting type with a load-bearing capacity of 3t), and (brake universal wheel type with a load-bearing capacity of 1t).
