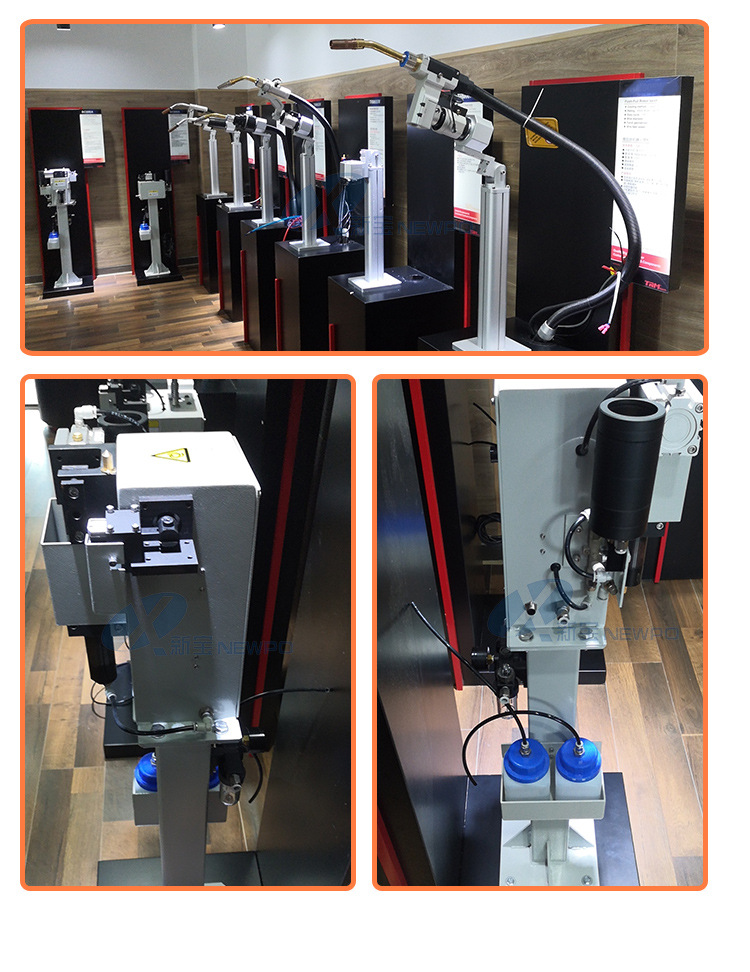

Robot gun cleaning station

Commodity name：Robot gun cleaning station
Manufacturer： Xinbao Intelligent

The cleaning and oil spraying design of the cleaning and cutting mechanism at the same position of the cleaning station allows the robot to complete the cleaning and oil spraying action with just one signal.

Message

Product Details

　　Characteristics:

　　The cleaning and oil spraying design of the cleaning and cutting mechanism at the same position of the gun cleaning station allows the robot to complete the cleaning and oil spraying action with just one signal.

　　2. The gun cleaning and wire cutting mechanism only takes 6-7 seconds to complete the entire cleaning process, which is 12 seconds compared to other similar products. This greatly saves the robot cleaning time and improves its work efficiency.

　　3. The cleaning and wire cutting mechanism is combined with the German TBi 81/82W robot welding gun, using a multifunctional cutter. The cleaning effect can reach the root of the conductive nozzle seat

　　4. The important components of the gun cleaning and wire cutting mechanism are protected by high-quality casings to prevent collisions, splashes, and dust from affecting them

　　5. The new gun cleaning station's built-in fuel injection device is controlled by a robot through an electromagnetic valve (photoelectric induction fuel injection is optional, saving robot signals) for safe and reliable maintenance. The atomized anti splash agent can effectively reach the root of the welding gun head, and the relatively closed oil spray chamber greatly reduces the oil mist pollution problem in the old design.

　　6. The wire cutting device is controlled by an electromagnetic valve for more accurate wire cutting. At the same time, the compact structure of the new safety protection hood ensures that the cut welding wire falls into the collection box, avoiding secondary pollution.

　　Compared with other brands of products, the electrical layout of the wire cutting device is very simple, all control components are safely placed inside the chassis, and there are very few exposed pipelines.
