Container welding crane arm robot

Commodity name：Container welding crane arm robot
Manufacturer： Xinbao Intelligent

The joints connected by welding methods in welding automation are called welding joints, which mainly play a role in connecting and transmitting forces. Welding joints consist of three parts: weld seam, fusion zone, and heat affected zone. The preparation work before welding for butt joints is simple and easy to assemble.

Message

Product Details

　　1. Scheme Overview

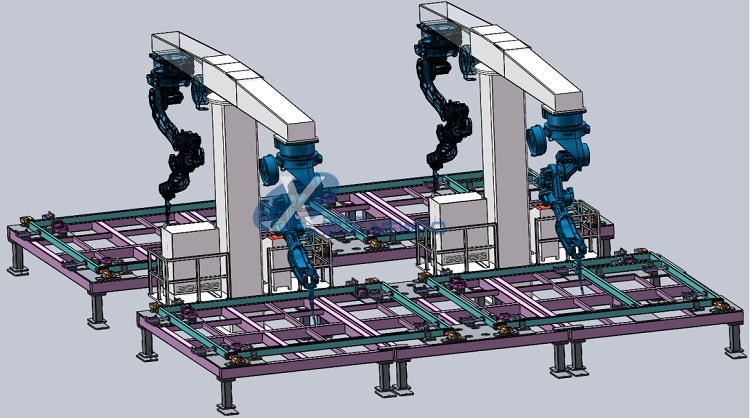

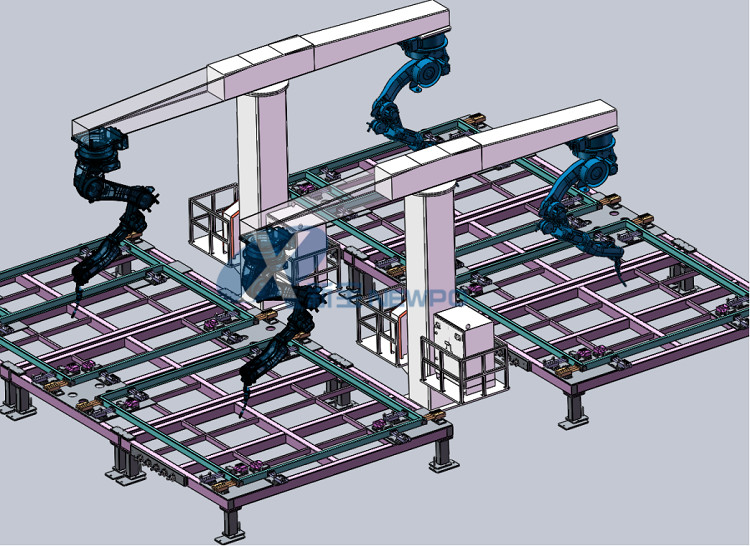

　　In order to improve work efficiency, based on the actual situation of your company's workpieces, we will provide your company with one set of robot welding workstations. The workstation consists of two Karnop CRP-RH20-10-W welding robots, welding power supply, robot specific welding gun, electrical control and button station, safety protection fence (optional) and other parts.

　　2. Welding workpiece description

　　Welding wire specification: Ø 1.2mm

　　Welding process: gas shielded welding

　　Weld seam form: straight line, circular arc

　　Working mode: manual loading and unloading, robot automatic welding

　　Group gap: ≤ 1mm Pre weld cleaning: Visible metallic light within the weld seam and twice the height of the weld seam on both sides

　　3. Workflow

　　1. The operator places the workpiece on workstation one, presses the reservation start button, and the robot begins welding operations.

　　2. The operator places the workpiece on workstation two, presses the reservation start button, and waits for the robot to weld.

　　3. After completing welding at workstation one, the robot automatically starts welding at workstation two.

　　4. The operator unloads the welded product at the workstation and continues to clamp the workpiece.

　　5. Repeat this cycle.
