Domestic welding robots

Commodity name：Domestic welding robots
Manufacturer： Xinbao Intelligent

The characteristics of the development of domestic robots can be summarized as follows: horizontally, the application scope is becoming wider and wider. Expand from 95% of industrial applications to more non industrial applications in various fields.

Message

Product Details

　　Functional Features

　　·Arm span is nearly 1.8 meters. The design is highly compact and can be flexibly selected for ground installation or inverted installation.

　　·Large workspace, fast operating speed, high repeatability accuracy, suitable for welding, spraying, loading and unloading, handling, sorting, assembly and other applications, with a wide range of applications.

　　·Configure a safety emergency stop board independent of the control system, adopt a safety relay circuit, and provide dual circuit emergency stop to ensure the reliability of emergency stop.

　　·The main cable adopts high flexibility robot specific cable.

　　·Equipped with a three-phase transformer, 380V and 200V are isolated for more stable power supply. Equipped with a three-phase filter, effectively improving EMC and EMI performance.

　　·The body provides dual circuit air pipes to meet the needs of welding and handling.

　　·The inner diameter of the 6-axis center hole is 46mm, which can meet the installation requirements of water-cooled guns and corrugated pipe guns.

　　·Built in high flexibility welding cable.

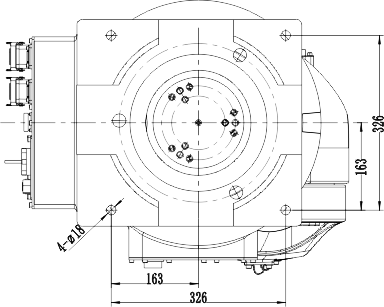

Installation dimensions of the base

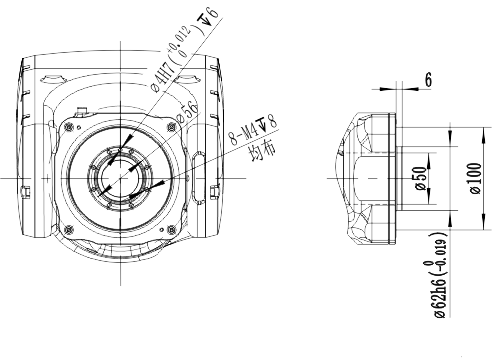

The size of the flange

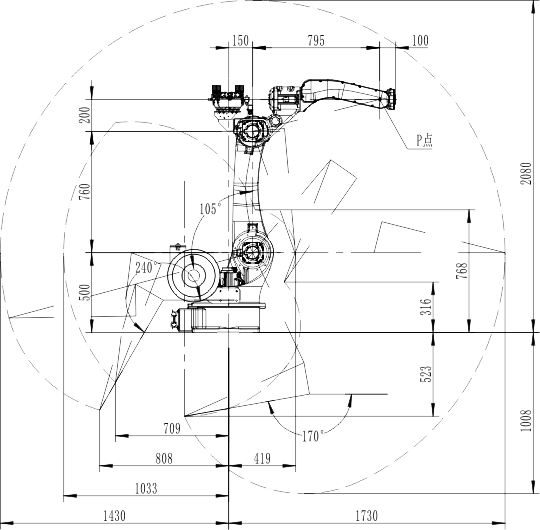

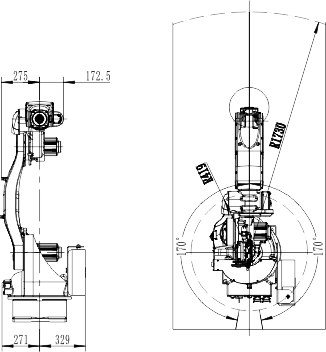

　　Scope of Work Diagram
